Oksjen Jeneratörü



AGK offers a new product Oxygen Generator with the brand OXYMAK.



What is Oxygen Concentrator?



It is also called air separation system.  The name of the technology used in this process is PSA (Pressure

Swing Adsorption).

Atmospheric air is comprised of 21% O2, 78% N2 and the remaining 1% is mostly argon and CO2.  In PSA

systemsatmospheric air is taken into a pressurized tank. Tanks include zeolites inside. Zeolites have the ability

to deform and create a dipole  under pressure. Depending on the zeolite chosen this dipole allows fort he

collection of nitrogen but allows oxygen to pass.

Oxygen generator produces oxygen by using PSA technology.



What does the Oxygen Generator System include?



The system comprises of

-          Oxygen Concentrator

-          Air Compressor

-          Air Dryer

-          Air receiving tank

-          O2 receiving tank

-          Filter group ( Bacterial filters, Active  Carbon Filter  ) for medical use



Main features of OXYMAK/NAVOX Oxygen Generators



Purity                                     : 90% - 96%

Output Pressure                      : 1-6 bars

            Power                         : 220 VAC, 50 Hertz, Single Phase for O2 concentrator

                                              : 380 VAC, 50 Hertz, Three Phases for Air Compressor

            Control                        :  PLC with Touch Screen Control. Monitoring all parameters on the screen

            Purity measurement     : Purity measurement is made by zirconium O2 sensors

            Language                    : Turkish/English/Arabic

             Easy to install, Operate and Maintain





Advantages

  • Full automation, ease of maintenance
  • High fail-safety and reliability
  • Minimum operator control required during operation
  • Quick system startup and shutdown
  • High purity of product oxygen up to 96%. ( The purity can de increased upto99% upon customer requirement with extra cost
  • Low operating costs

Specifications :



Model

Air Usage (Nm3/min)

Oxygen Output (Nm3/h)

Compressor (HP)

OXYMAK – 1

NAVOX - 1

0,32

1,3

5,0

OXYMAK – 2

NAVOX - 2

0,55

2,4

7,5

OXYMAK – 4

NAVOX - 4

0,87

4,5

10,0

OXYMAK – 6

NAVOX - 6

1,26

6,3

15,0

OXYMAK – 12

NAVOX - 12

2,37

12,4

25,0

OXYMAK – 16

NAVOX - 16

3,31

16,0

35,0

OXYMAK – 20

NAVOX - 20

4,21

20,5

50,0

OXYMAK – 26

NAVOX - 26

5,52

26,0

60,0

OXYMAK – 32

NAVOX - 32

6,83

32,9

75,0

OXYMAK – 40

NAVOX - 40

8,28

39,4

90,0

OXYMAK – 50

NAVOX - 50

11,04

52,6

120,0

OXYMAK – 75

NAVOX - 75

16,56

78,9

175,0


The capacities (oxygen output)  are standard capacities. We can also produce different capacities as per customer requirements

  • Customer can buy only oxygen concentrator and buy other equipment ( compressor, dryer air receiving and O2 receiving tanks from domestic market  ) Or we can also provide these equipment together with OXYMAK Concentrator as a whole system.
  • We can also produce nitrogen generators upon customer request.

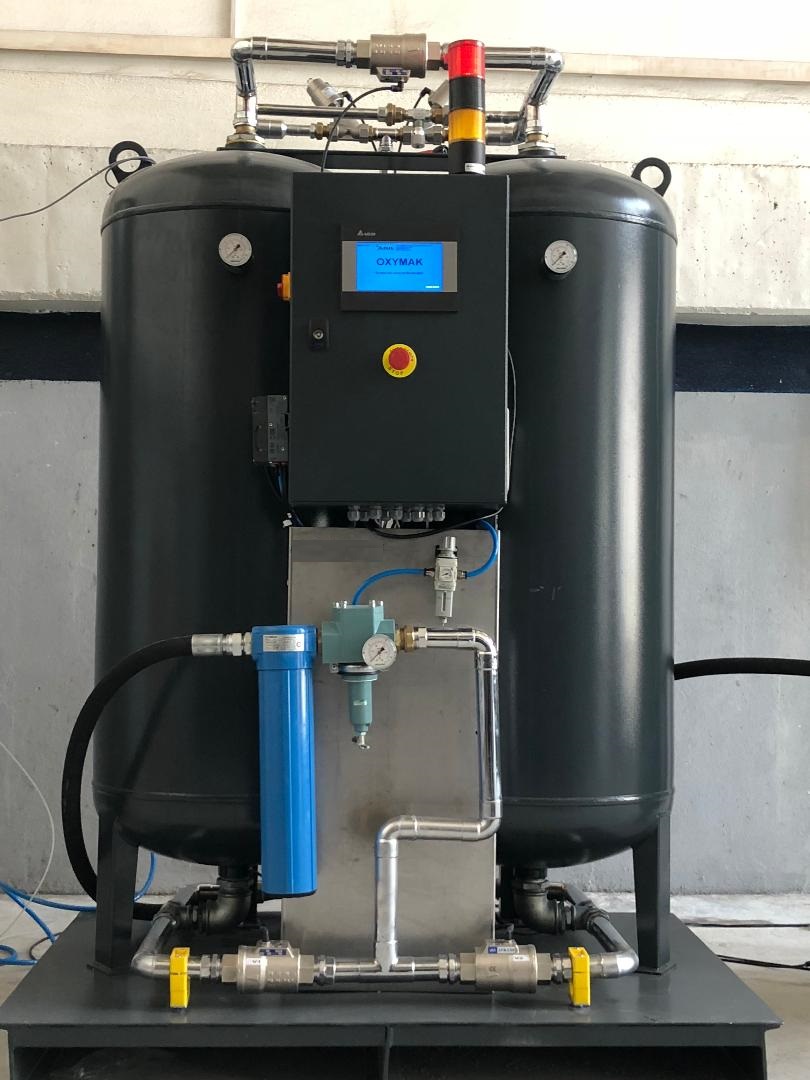

PSA unit

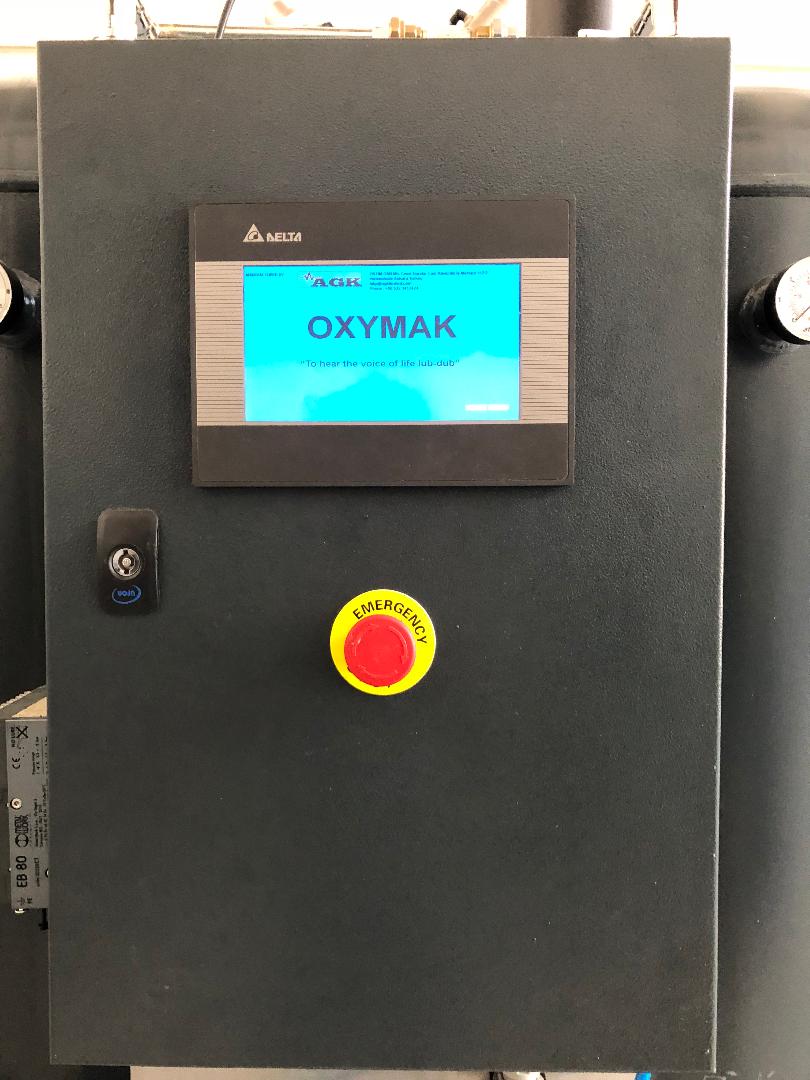

Control panel

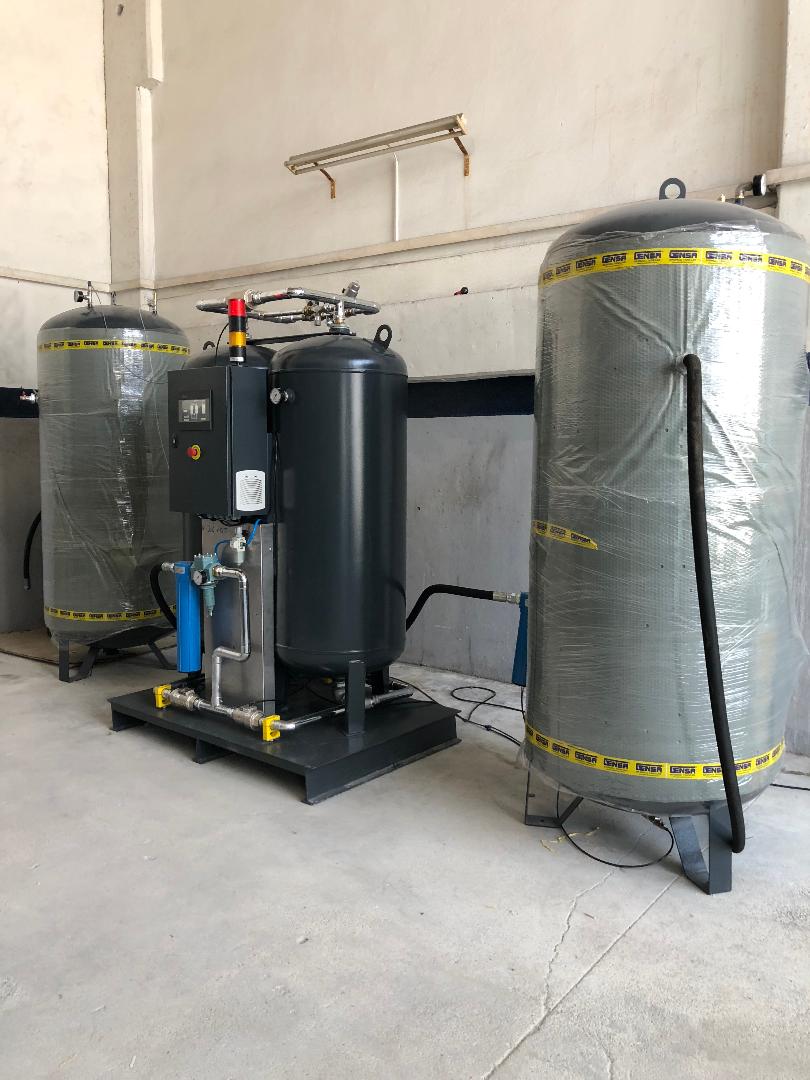

PSA + tank and filter groups
